Supercritical Transformational Electric Power Pilot Plant

In October 2018, Southwest Research broke ground on a Supercritical Transformational Electric Power (STEP) pilot plant to demonstrate supercritical carbon dioxide (sCO2) technology. The novel 15-acre facility, located on the grounds of SwRI in San Antonio, will house first-of-its-kind equipment to demonstrate and test sCO2 as the working fluid in power system components. Construction will be completed in 2020.

The U.S. Department of Energy contributed nearly $80 million to the project. The system will be part of an effort to advance a power generation technology with the potential to produce lower cost electricity with reduced emissions.

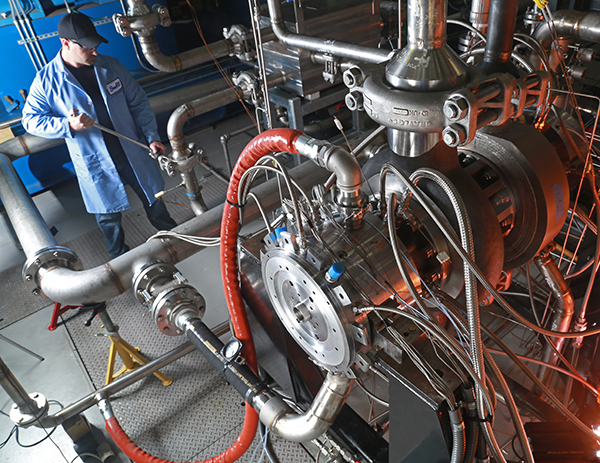

The 10-MWe STEP power plant will use sCO2 as a power source.

Supercritical CO2 Brayton Cycle

About 60 percent of all power in North America comes from the burning of fossil fuel. Most power plants in the United States are close to 30 years old, with many operating at 35 percent efficiency or less while creating significant greenhouse gas emissions from burning large amount of hydrocarbon fuels.

The supercritical CO2 Brayton cycle differs from steam Rankine cycles used in traditional power generation. sCO2 is carbon dioxide held above a critical temperature and pressure, which causes it to act like a gas while having the density of a liquid. It’s also nontoxic and nonflammable, and its supercritical state makes sCO2 a highly efficient fluid to generate power because small changes in temperature or pressure cause significant shifts in its density. Current power plants use water as a thermal medium in power cycles. Replacing it with sCO2 increases efficiency by as much as 10 percent.

The STEP facility is designed to address some specific technical challenges to commercialization of the promising sCO2 technology. The benefits of developing and deploying this are crucial to efficiently using conventional power supplies as we move forward implementing alternatives.

Because of the efficiency of sCO2 as a thermal medium, STEP turbomachinery can be one-tenth the size of conventional power plant components, providing the potential to shrink the environmental footprint as well as the construction cost of any new facilities. The new STEP facility will be significantly smaller than today’s power plants. For example, a desk-sized sCO2 turbine could power 10,000 homes.

STEP objectives include refining the sCO2 power cycle, demonstrating component performance and scalability, and designing the facility to accommodate multiple new supporting technologies.

SwRI, sCO2, and San Antonio

When the facility is completed, SwRI researchers will strive to advance the technology for commercial adoption. They’ll also work to refine the sCO2 power cycle, demonstrate the machinery’s scalability and performance ability.

The plant can be configured to provide on-site user training as well as operations experience, which will contribute to the effort to commercialize this technology. It has also been designed to adapt to industry changes as well as to provide educational and research advantages.

Even after sCO2 power cycles expand to the commercial sector, the facility is positioned to serve as a testbed for expanding and improving the technology.
